这篇文章展示了数据库系统的学习记录

1 Rational Data Model (record-based logical model)

1.1 Basic structure

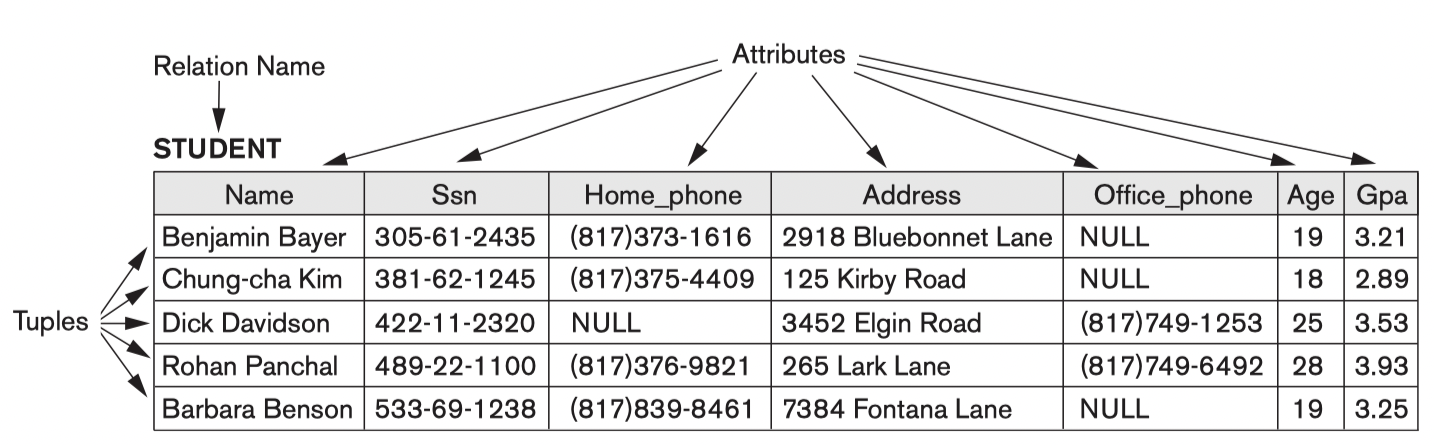

• Relations:

  • Data stored as tables (called relations); each has a unique name
  • A relation consists of rows (called tuples) and columns (called attributes)

• Attributes:

  • An attribute has a “domain”

• Record:

  • Each row/tuple in a relation is a record (an entity)
  • Each attribute in a relation corresponds to a particular filed of a record

DB Schema: relatively static, the whole structure DB instance: dynamic, data & structure

1.2 Key

Candidate and primary keys are also defined by relational data model Super keys are similar to candidate/primary keys, but are not required to be minimal. (可以有其他属性)

1.3 Characteristic of Relations

• Ordering of tuples in a relation r(R): The tuples are not considered to be ordered, even though they appear in order in the table form.

• Ordering of attributes in a relation schema R (and of values within each tuple): We will consider the attributes in R(A1, A2, …, An) and the values in t=<v1, v2, …, vn> to be ordered .

• Values in a tuple: All values are considered atomic (indivisible). A special null value is used to represent values that are unknown or inapplicable to certain tuples.

Can a key attribute contain NULL values? Why? No, since a key attribute is a unique data to identify an entity in an entity set, if the key is null, which is meaningless.

2 ER vs. Rational Data Model

2.1 Mapping ER Diagrams into Tables

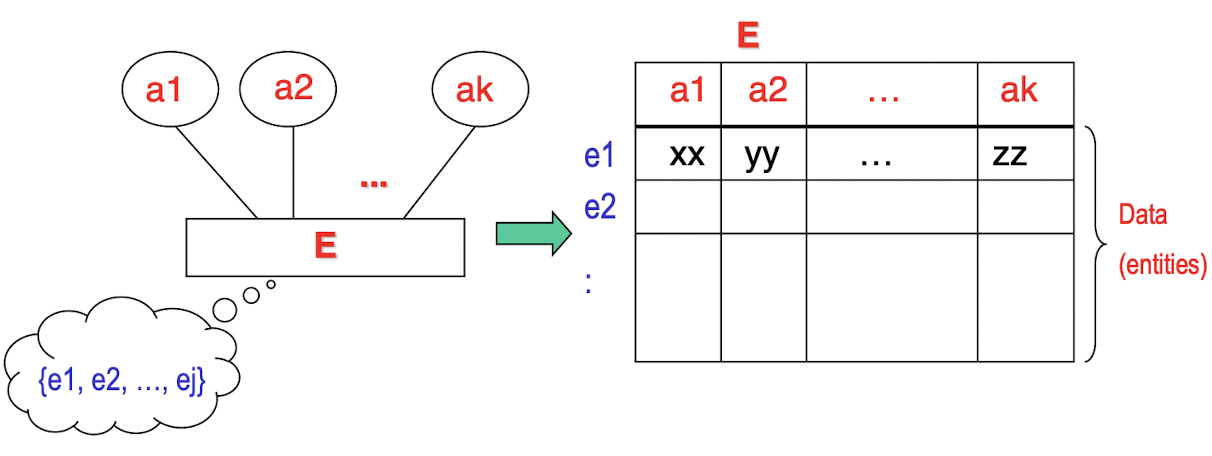

2.1.1 Repersentation of Entity(Strong) sets

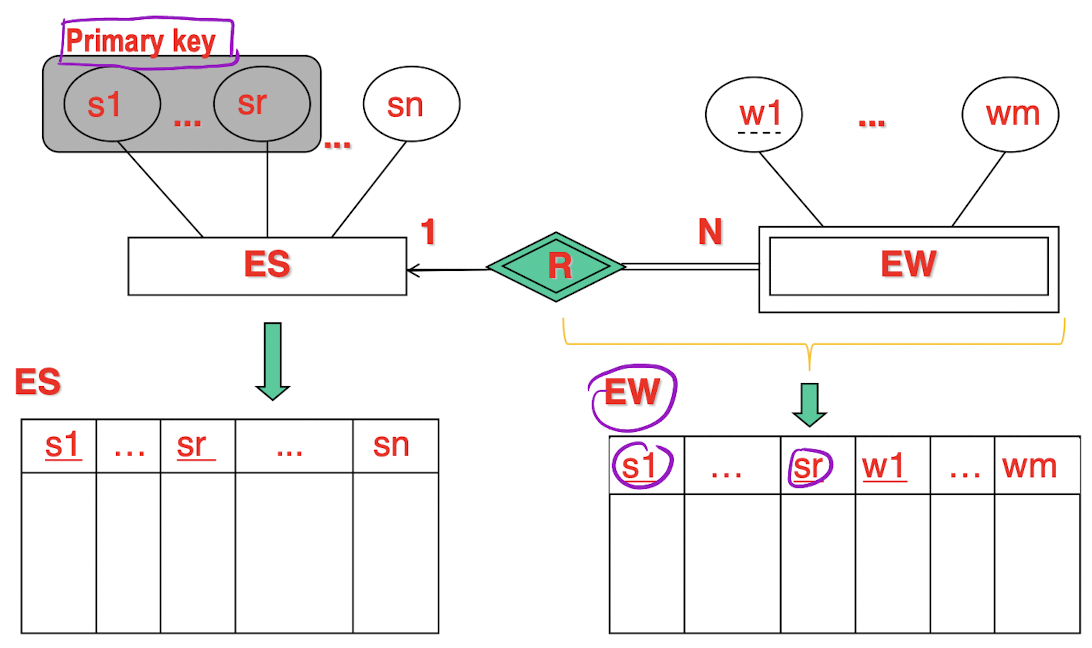

2.1.2 Repersentation of Weak Entity sets

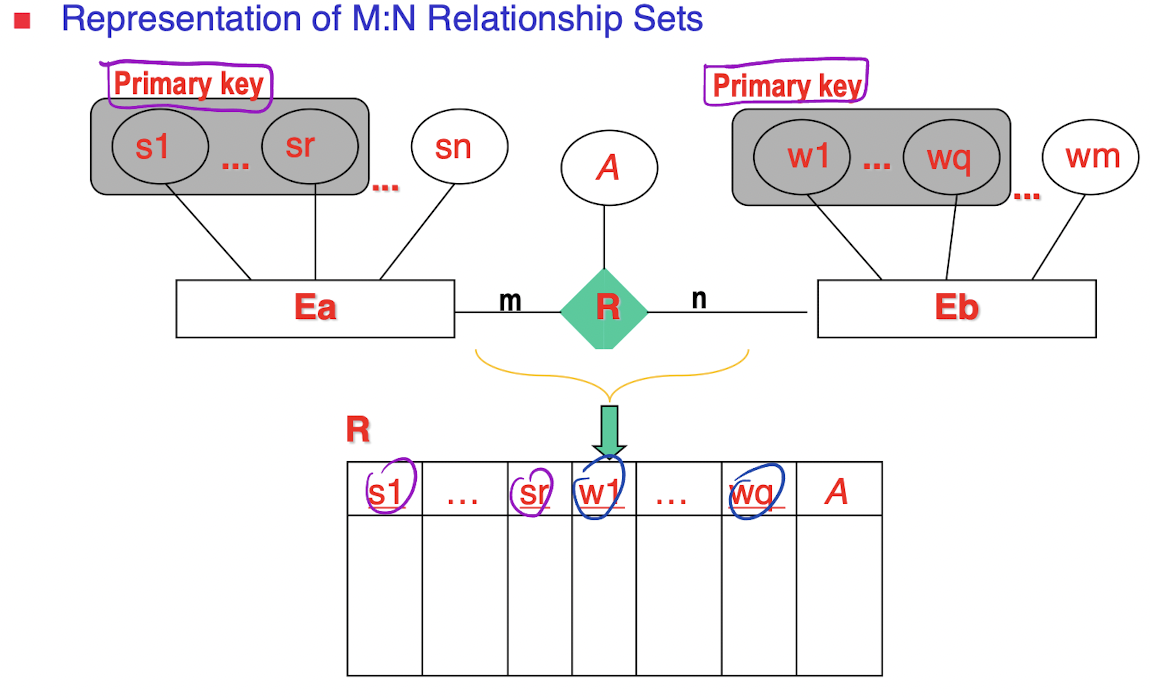

2.1.3 Repersentation of M:N Relationship Sets

2.1.4 ER to relational schema

Relation Table & Entity Table

• Relation table

Strong relation

primary keys of connecting entities	relation attributes(if any)
Weak relation
primary keys of connecting strong entities	all attributes of all weak entities
—	—

• Entity table

Strong entity

all attributes (sign the key attribute(s))
Weak entity
all primary keys of corresponding strong entity
—

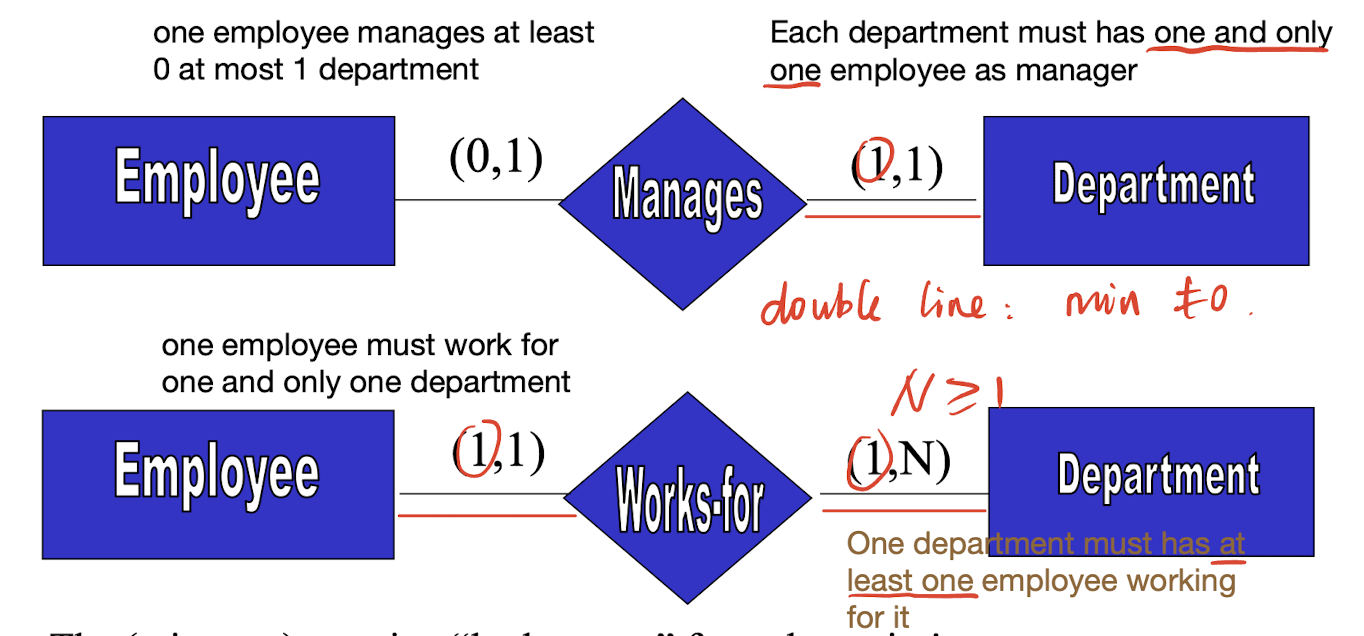

2.2 (min,max) notation

• (min,max) notation replaces the cardinality ratio(1:1,1:N,M:N) and single/double-line notation for participation constraints;
• Definition:

For EACH entity e in E, e MUST participate in at least $min$ and at most $max$ relationship instances in R at any point in time.

• Conver it into English: for a particular entity(e.g. Stundet A in Student Entity), MUST appear(participate) in at most $max$ & at least $min$ tuples in the table(relation R).
• As a result
  • For $min$
    • $min = 0\to$ partial participation - single line, not all entities participate
    • $min>0\to$ total paricipation - double line, all entities MUST appear in rows
  • For $max$
    • For a entity, it MUST appear in at most $max$ rows in a table

[Example]

Translation between Cardinality ratio and (min,max) notation:

1. Cardinality ratio 1:1 $\to$ (min,max): $(x,1)$;$(1,x)$
   • $x=0$, the entity has partial participation
   • $x=1$, the entity has total participation

Example:

ID === HAS === Student Cardinality ratio 1:1: double lines mean total participation

• For every ID, it MUST be hold by one and only one student
• For each student, he/she MUST has one and only one ID

ID =(1,1)= HAS =(1,1)= Student (min,max) notation: in HAS tabke

• Each student MUSt appear in the table one and only one row
• Each ID MUSt appear in the table one and only one row

2. Cardinality ratio 1:N $\to$ (min,max): $(x,N)$;$(1,x)$
   • $x=0$, the entity has partial participation
   • $x=1$, the entity has total participation
3. Cardinality ratio N:1 $\to$ (min,max): $(x,1)$;$(N,x)$
   • $x=0$, the entity has partial participation
   • $x=1$, the entity has total participation

Example Employee === WORKS_FOR === Department Cardinality ratio 1:N: double lines mean total participation

• One employee must work for one and only one department
• One department must has at least one employee working for it

(min,max) notation: =(1,1)= WORKS_FOR =(1,N)= Department

• Each employee MUST appear in the table one and only one row
• Each department MUST appear in the table at least one row, at most N rows

4. Cardinality ratio M:N $\to$ (min,max): $(x,N)$;$(x,M)$
   • $x=0$, the entity has partial participation
   • $x=1$, the entity has total participation

3 SQL

3.1 Basic syntax (structure) of SQL

1
2
3
4

SELECT [DISTINCT] attribute1,...
FROM table1 [name1], tabel2 [name2],...
    [WHERE requirement]
    [GROUP BY (attribute) HAVING requirement];

[Example]

Following relational schema: Customer (cname, street, city) Branch (bname, assets, b-city) Borrow (bname, loan#, cname, amount) Deposit (bname, acct#, cname, balance)

• E1: Find all customers of the Sai Kong branch

1
2
3
4
5
6
7

(SELECT cname
FROM Deposit
WHERE bname = 'Sai Kong') -- 注意是单引号
UNION -- not only Deposit customres, but borrow customers
  (SELECT cname
  FROM Borrow
  WHERE bname = 'Sai Kong');

• E2: Find the name and city of all customers having a loan at the Sai Kong branch

1
2
3
4

SELECT DISTINCT Customer.cname,city
FROM Borrow,Customer
WHERE Borrow.cname = Customer.cname
  AND Borrow.bname = 'Sai Kong';

• E3: Find the names of all customers whose street has the substring ‘Main’ included

1
2
3

SELECT cname
FROM Customer
WHERE Customer.street LIKE '%Main%';

• E4: Find all customers who have an account at some branch in which Jones has an account

1
2
3
4
5
6
7

SELECT DISTINCT S1.cname
FROM Deposit S1
WHERE S1.bname IN
  (SELECT bname
   FROM Deposit S2
   WHERE S2.cname = 'Jones')
   AND S1.cname != 'Jnoes';

1
2
3
4
5

SELECT DISTINCT S2.cname
FROM Deposit S1,Deposit S2
WHERE S1.cname = 'Jnoes'
AND S1.bname = S2.bname
AND S1.cname != S2.cname;

• E5: Find branches having greater assets than all branches in N.T.

1
2
3
4
5
6

SELECT B1.bname
FROM Branch B1
WHERE B1.assets > ALL (SELECT B2.assets
                       FROM Branch B2
                       WHERE B2.b-city = 'N.T.'
                       );

1
2
3
4
5
6
7
8

SELECT B1.bname
FROM Branch B1
WHERE NOT EXISTS
  (SELECT *
   FROM Branch B2
   WHERE B2.assets >= B1.assets
   AND B2.b-city = 'N.T.'
  );

• E6: Find names of all branches that have greater assets than some branch located in Kowloon

1
2
3
4
5
6

SELECT bname
FROM Branch
WHERE assets > SOME
  (SELECT assets
   FROM Branch
   WHERE b-city = 'Kwoloon');

1
2
3
4

SELECT bname
FROM Branch B1,Branch B2
WHERE B1.assets > B2.assets
AND B2.b-city = 'Kwoloon';

• E7: Find all customers who have a deposit account at allbranches located in Kowloon

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

SELECT DISTINCT S.cname
FROM Deposit S
WHERE
 (SELECT T.bname
  FROM Deposit T account
  WHERE S.cname = T.cname) -- the set of branches he/she has a deposit account
CONTAINS
 (SELECT bname
  FROM Branch
  WHERE b-city = 'Kowloon'); -- the set of branches on Kwoloon

• E8: Find all customers of Central branch who have an account there but no loan there

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

SELECT C.cname
FROM Customer C
WHERE EXISTS
  (SELECT *
   FROM Deposit D
   WHERE D.cname = C.cname
   AND D.bname = 'Central')
   AND NOT EXISTS
      (SELECT *
       FROM Borrow B
       WHERE B.cname = C.cname
       AND B.bname = 'Central');

• E9: Find all customers who have a deposit account at ALL branches located in Kowloon

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

SELECT DISTINCT S.cname
FROM Deposit S
 WHERE NOT EXISTS(
  (SELECT bname
   FROM Branch
   WHERE b-city = 'Kowloon')
MINUS
  (SELECT T.bname customer S
   FROM Deposit T
   WHERE S.cname = T.cname));

• E10: List in alphabetic order all customers having a loan at branches in Kowloon

1
2
3
4

SELECT DISTINCT cname
FROM Borrow
WHERE b-city = 'Kowloon'
ORDER BY cname;  --By default, in ascending order.

• E11: List the entire borrow table in descending order of amount, and if several loans have the same amount, order them in ascending order by loan#

1
2
3

SELECT *
FROM Borrow
ORDER BY amount DESC, loan# ASC; -- when the <amount> is the same, order aomunt by <loan#> in ascending, and so on.

3.2 NULL Value

• All comparisons involving Null become FALSE!!!

• A modification is permitted through a view ONLY IF the view is defined in terms of ONE base/physical relation(whether all the values of tuple are full).

• In most SQL-based DBMSs, the special keyword NULL may be used to test for a null value.

[like]

1
2
3

SELECT c-name
FROM Deposit
WHERE balance IS NOT NULL;

3.3 Aggregate Function

• Compute functions on groups of tuples using the group by clause

  • Tuples with the same value on all attributes in the group by clause are placed in one group
  • Aggregate function includeds: avg, sum, min, count, max

• E1: Find the average account balance at each branch:

1
2
3

SELECT b-name, AVG(balance)
FROM Deposit
GROUP BY b-name;

• E2: If only interested in branches where average balance is > $12000:

1
2
3
4

SELECT b-name, AVG(balance)
FROM Deposit
GROUP BY b-name
HAVING AVG(balance) > 12000;

• E3: Find those branches with the highest average balance:

1
2
3
4
5
6

SELECT b-name
FROM Deposit
GROUP BY b-name
HAVING AVG(balance) = SELECT MAX(AVG(balance))
                      FROM Deposit
                      GROUP BY b-name);

• E4: Find the average balance of all depositers who live in Laguna city and have at least 3 accounts:

1
2
3
4
5

SELECT AVG(balance)
FROM Deposit, Customer
WHERE Deposit.c-name = Customer.c-name
AND city = 'Laguna'
GROUP BY Deposit.c-name HAVING COUNT(DISTINCT acct#) >= 3;

学习笔记，仅供参考
