Integrity Constraints & Normal Forms

1 Key constraints

Superkey of R: A set of attributes SK of R such that no two tuples in any valid relation instance r(R) will have the same value for SK. That is, for any distinct tuples t1 and t2 in r(R), t1[SK] <> t2[SK].
Candidate key of R: A “minimal” superkey; that is, a superkey K such that removal of any attribute from K results in a set of attributes that is not a superkey.
Primary key of R: choice by the DB designer when there are more than one candidate key

Two relation constraints (single relation above)
- To ensure that a value appears in one relation also appears in another relation.
- Implies “subset dependency” relationship between 2 sets of attributes in 2 tables

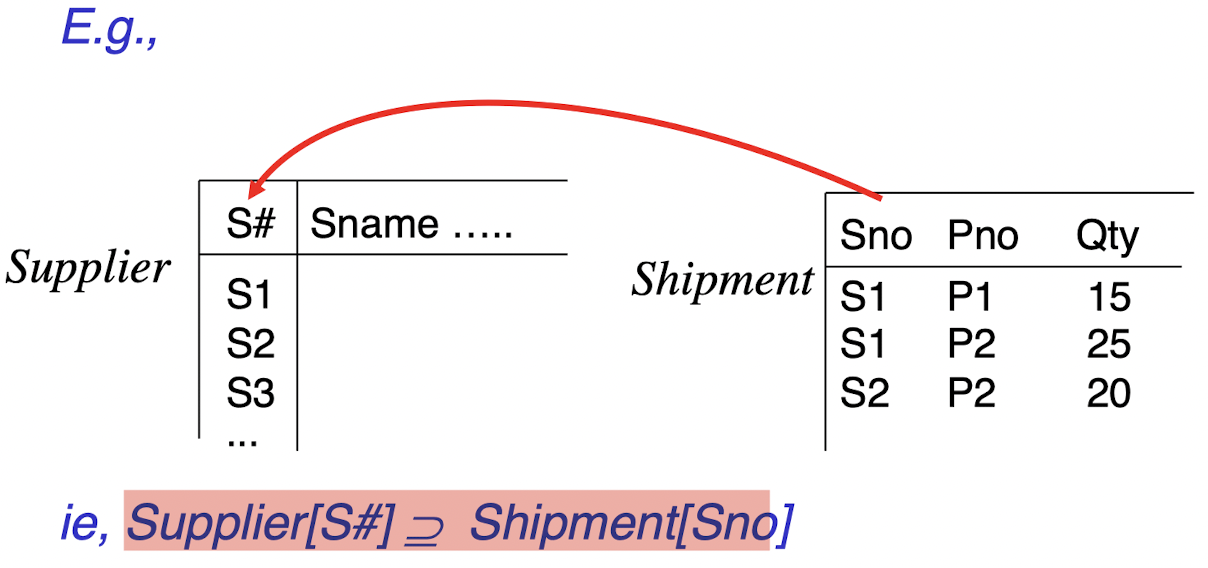

Supplier relation is a foreign table of Shipment

When to check integrity constraints?

INSERT, DELETE, MODIFY the tuple

FD is a particular kind of constraints
Definition
- R is a relation schema, and $\alpha \subseteq R$, $\beta \subseteq R$, then
- $$\alpha \to \beta$$
- for all pairs of tuples tq and t2 in any legal relation instance r(R), we have
- $$t1[\alpha]=t2[\alpha]\to t1[\beta]=t2[\beta]$$

As a result, FD can be used to identify and find primary key.

Given a set of FDs $F$, we can infer additional FDs that hold whenever the FDs in $F$:
- IR1 - Reflexive: If $Y$ is a subset of $X$, then $X\to Y$
- IR2 - Augmentation: If $X\to Y$, then $XZ\to YZ$, ($XZ$ stands for $X \cup Z$)
- IR3 - Transitive: If $X\to Y$ and $Y\to X$, then $X\to Z$
Closure of a set $F$ of FDs is the set $F^+$ of all FDs that can be inferred from $F$
Equivalence of two sets $F$ and $G$ of FDs
- Every FD in $F$ can be inferred from $G$
- Every FD in $F$ can be inferred from $G$
- Hence, $F$ and $G$ are equivalent if $F^+$ = $G^+$

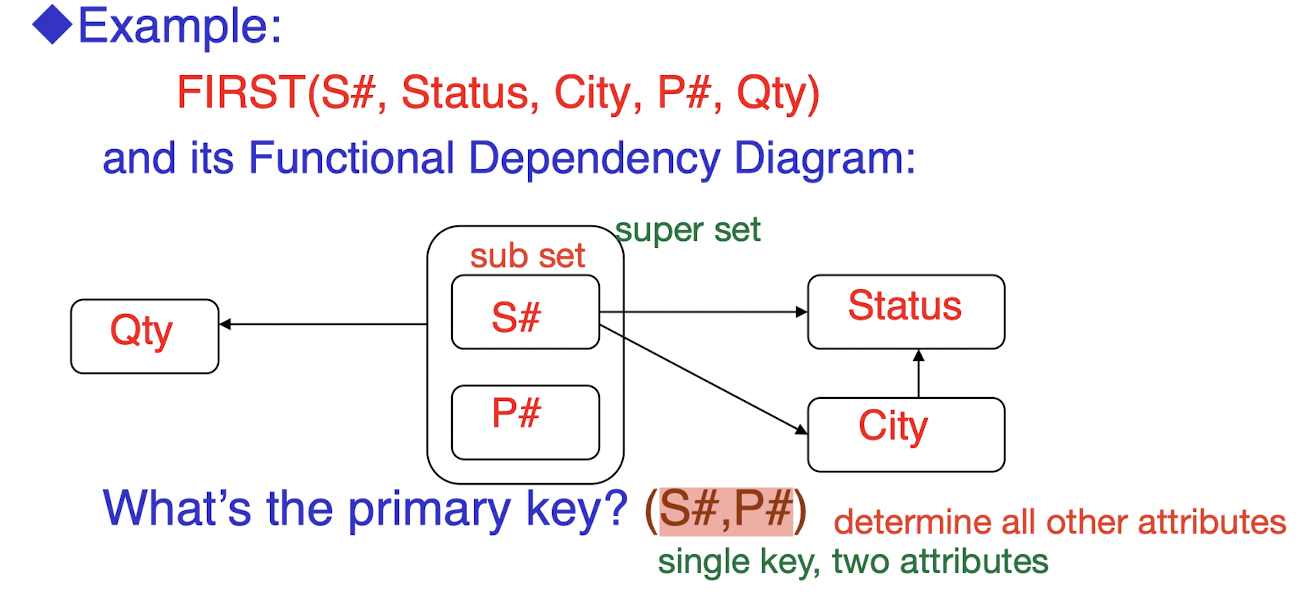

A relation R is in 1NF if and only if all underlying domians cantain atomic(indivisible) value only

atomic: an attribute can not be decomposed, like, address can be decomposed to province, city, road number, door number, etc.

A relation R is in 2NF if amd only if it is in 1NF and every non-key attributes is fully dependent on any candidate/primary key(include that nonprime attribute is transitively dependent on the primary key)
- R(I,C,D,N)
- FD:{I->C, I->D, CD->N, IO->G}
- R is 2NF
  - I is a candidate key
  - C, D, N are fully (transitively) dependent on I, which can be treated as CD->N <==> I->N

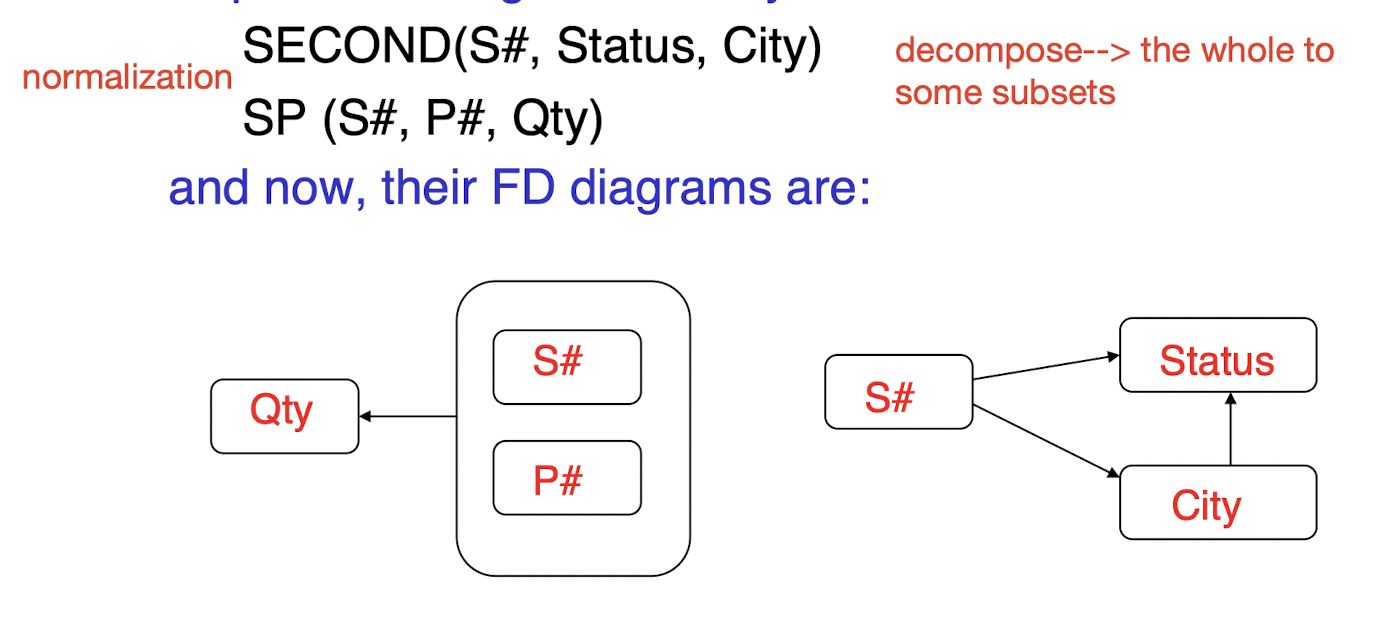

There is only one type of data stored a particular table, rather a combined-type data.

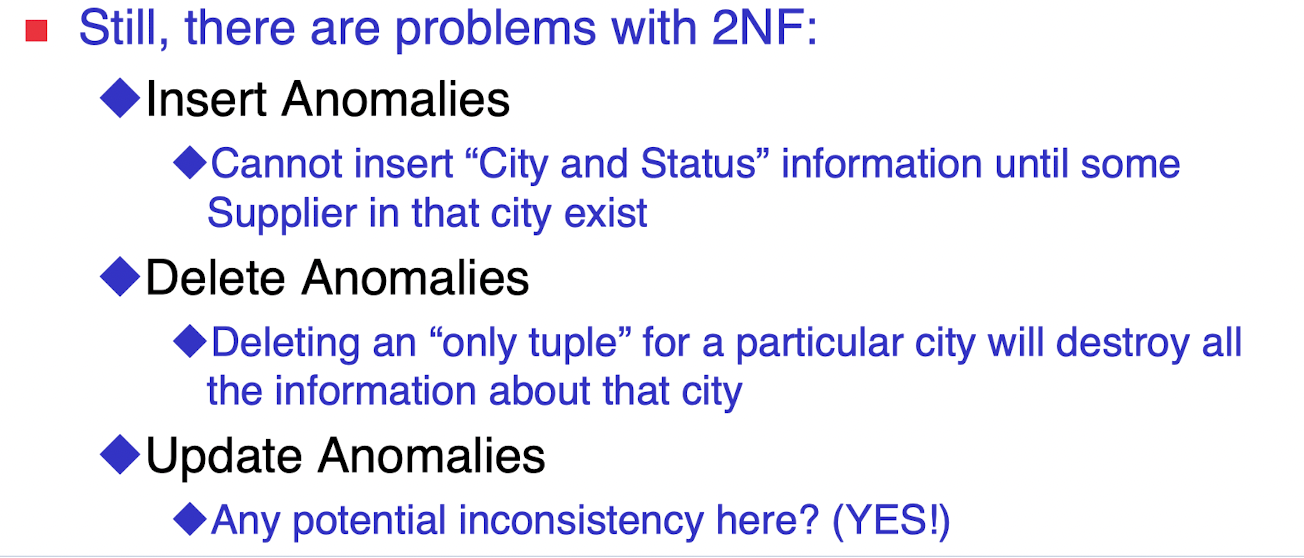

Both relations are in 2NF in the above case.

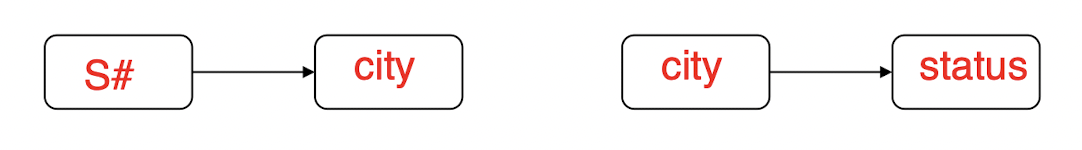

Solution(3NF)
- Replcae second table by two sub-tables
  - SC(S#,City)
  - CS(City,Status)
  - Keep SP(S#,P#,Qty)

A relation R is in 3NF if and only if it is in 2NF and every non-key attribute is non-transitively dependent on any candidate key.

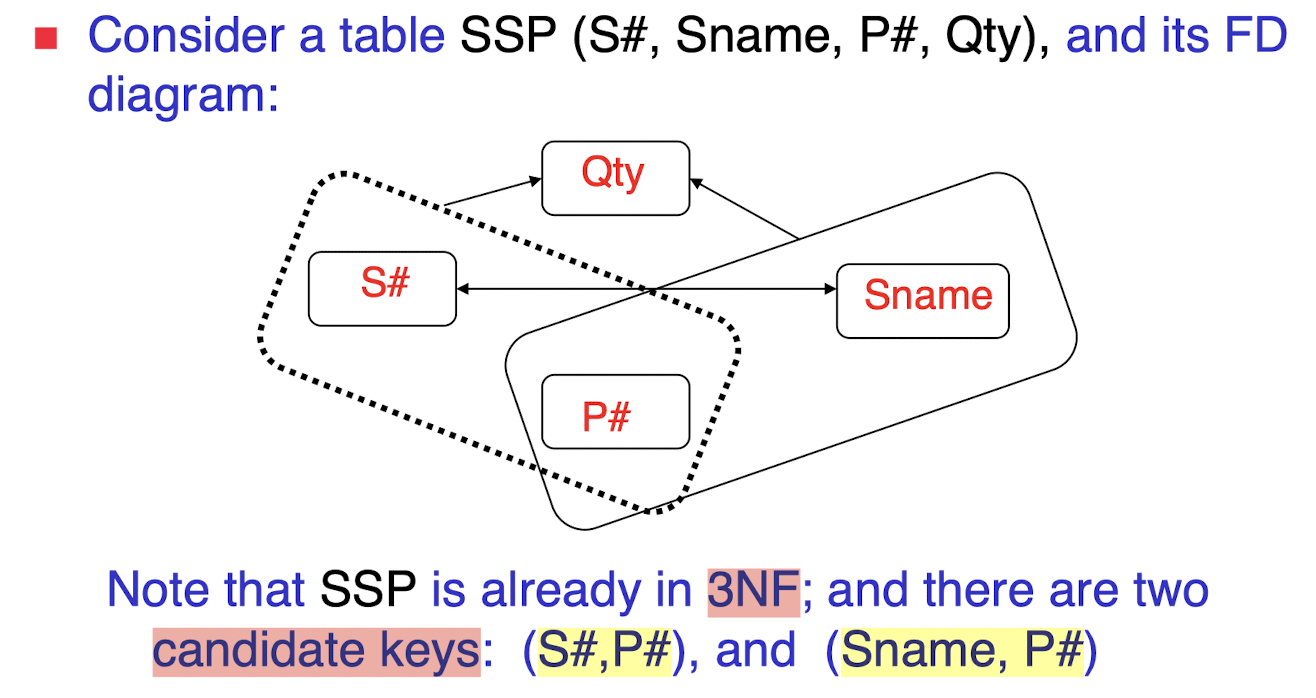

Some redundancy still exists
Solution
- Replace original SSP by two sub-tables
- SS(S#,Sname)
- SP(S#,P#,Qty) [or,SP(Sname,P#,Qty)]

A relation R is in BCNF if and only if every determinant (left-hand side of an FD) is a candidate key.

第一范式：1NF是对属性的原子性约束，要求属性具有原子性，不可分解；第二范式：2NF是对记录的惟一性约束，要求记录有惟一标识，即实体的惟一性；第三范式：3NF是对字段冗余性的约束，即任何字段不能由其他字段派生出来，它要求字段没有冗余。

学习笔记，仅供参考
